מכונות לריתוך E.F

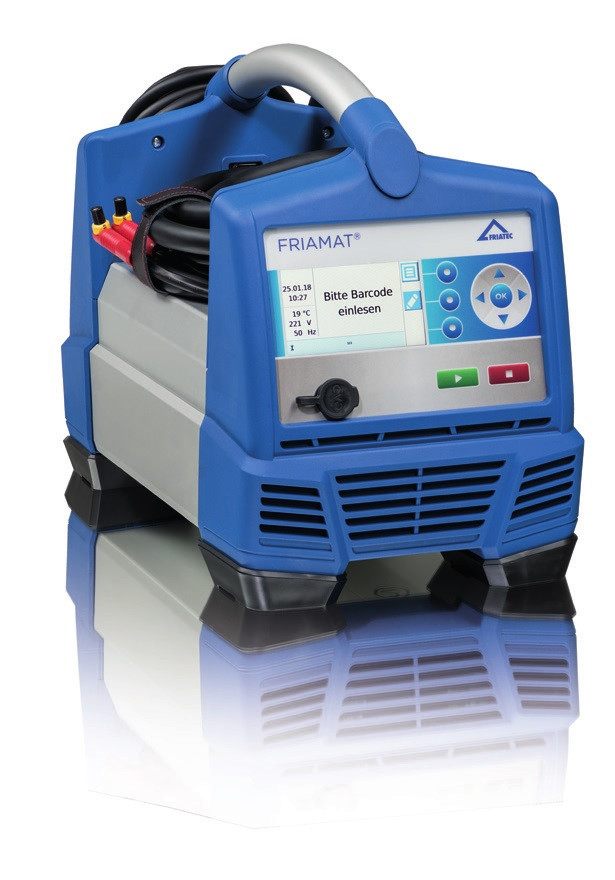

The FRIAMAT Eco series is the economically priced alternative to the FRIAMAT Prime and FRIAMAT Basic. FRIAMAT Prime Eco and FRIAMAT Basic Eco with toroidal transformer technology have similar equipment features, however, they are slightly heavier.

The electrofusion units are used universally and offer high reliability with features suitable for tough site use. They have a super long fusion cable (4m) and mains cable (5m) and thus exceed the standard specifications of 2.5 m for fusion cables and 3 m for mains cables (ISO 12176-2). The user is thus provided with the required mobility at the construction site.

The FRIAMAT Prime Eco with documentation function is equipped with a USB interface – protected by an interface cover against external influences – and therefore equipped for modern data transfer. With the FRIATEC Memory-Stick the fusion and traceability data can be easily transferred from the FRIAMAT to the PC as proven FRIATRACE data format, as CSV data or as pdf document.

The FRIAMAT Geo Print is an electrofusion unit with documentation function for fusions up to d75 and especially designed for fusions in the field of near-surface geothernal energy or for the house connection area.

Technical Details*	FRIAMAT Prime Eco
Type	Universal fusion unit with traceability and documentation function
Order Ref. with reader wand	613103
Order Ref. with barcode scanner	614103
Input voltage range	AC 190 V – 250 V
Output voltage range	8-48V
Output current	max. 110A
Frequency range	44 Hz...66 Hz
Input current	AC 16 A max.
Output	3,5 kW
Connecting cable	5 m connecting cable with shaped plug
Fusion cable	4 m fusion cable with fitting connector, 4 mm diameter
Barcode type	Code 2/5 interleaved code 128
Working temperature range	-20°C to +50°C
Interface	USB
Manual emergency input
Fusion pass
Supervisor pass
FRIATEC Memory Stick
Documentation of fusion data
Documentation of traceability data
Internal protocol memory	500
FRIATRACE database format
PDF protocol format
CSV protocol format
Manual GPS data input
Language variants	23
Weight	approx. 20,5 kg
Housing	International protection IP 54 / Protection class II
Approval/Quality	CE, ISO 9001, WEEE-Reg.-No DE 49130851, RoHS
* Specifications subject to change Standard Optional

The extra powerful FRIAMAT XL is an electrofusion unit for large pipes with traceability and documentation function. The FRIAMAT XL is matched to the FRIALEN XL product range, but also universally applicable for the processing of the entire FRIALEN and FRIAFIT product range.

Technical Details*	FRIAMAT Xl
Type	Large pipe fusion unit with traceability and documentation function
Order Ref. with barcode scanner	614090
Input voltage range	AC 400 V (3P+N+SL)
Output voltage range	12-80V
Frequency range	45 Hz...66 Hz
Input current	AC 16 A max. / 3 ~
Output	4,6 kW
Connecting cable	4 m with CEE connector (400V / 16A)
Fusion cable	4 m fusion cable with fitting connector, 4 mm diameter
Barcode type	Code 2/5 überlappt (interleaved) / Code128
Working temperature range	-20°C...+50°C
Interface	USB
Manual emergency input	l
Fusion pass	□
Supervisor pass	l
FRIATEC Memory Stick	l
Documentation of fusion data	l
Documentation of traceability data	l
Internal protocol memory	500
FRIATRACE database format	l
PDF protocol format	l
CSV protocol format	-
Manual GPS data input	l
Language variants	23
Weight	approx. 50 kg
Housing	International protection IP 54 / Protection class I
Approval/Quality	CE, ISO 9001, WEEE-Reg.-No. DE 49130851, RoHS

FRIATEC offers a complete range of tools and installation devices for universal use in electrofusion.

Further accessory which is not listed below is available in the current FRIATOOLS Catalogue

Barcode-Einlesegeräte

Barcode reading devices

FRIAMAT fusion units are equipped with the proven reader wand to read fusion and traceability barcodes. Optional FRIATEC features the FRIAMAT barcode scanner designed for rough use at construction sites and for a quick and precise reading.

Order Ref.	Article description
623645	Reader wand
624002	Barcodescanner

Kontaktstecker

Fusion contacts

The fusion contacts for FRIAMAT fusion units are easily interchangeable and provide optimum contact to the electrofusion fitting even after many plugging cycles.

Order Ref.	Article description
624530	Contact4 for socket contacts 4.0 mm
613236	ADFL for flat contacts
613237	ADBK for socket contacts 4.7 mm
613240	ADPC for socket contacts 4.0 mm

FRIAMAT Parallel-USB-Adapter

The FRIAMAT Parallel-USB-Adapter serves the connection of a printer with USB Type-B port to FRIAMAT fusion units with parallel interface. It allows direct printing of fusion data to a USB printer (GDI printer are not supported). The FRIAMAT Parallel-USB-Adapter may only be used on FRIAMAT fusion units manufactured from 2000.

Order Ref.	Article description
613263	FRIAMAT Parallel-USB-Adapter

FRIATRACE Database software

Software for processing of fusion data including traceability data from FRIAMAT fusion units with traceability and documentation function. With database function (all fusion data in one database) for individual evaluation, copying, sorting, searching, formatting, editing etc.

Order Ref.	Article description
613280	FRIATRACE database software (FRIATRACE CD-Rom, connecting cable PC –fusion unit)
624026	FRIATRACE combi-package (FRIATRACE CD-Rom, Memory-Stick)

Aluminium transport boxes

For transport and storage of FRIAMAT fusion units.

Order Ref.	Article description
627600	for FRIAMAT Prime / Basic (from Q1/14)
627001	for FRIAMAT Prime / Basic (to Q1/14)
627001	for FRIAMAT Prime Eco/Basic Eco/Geo Print
613302	for FRIAMAT XL
